2N2/30 Schematic Diagrams

2N2/30 Schematic AA

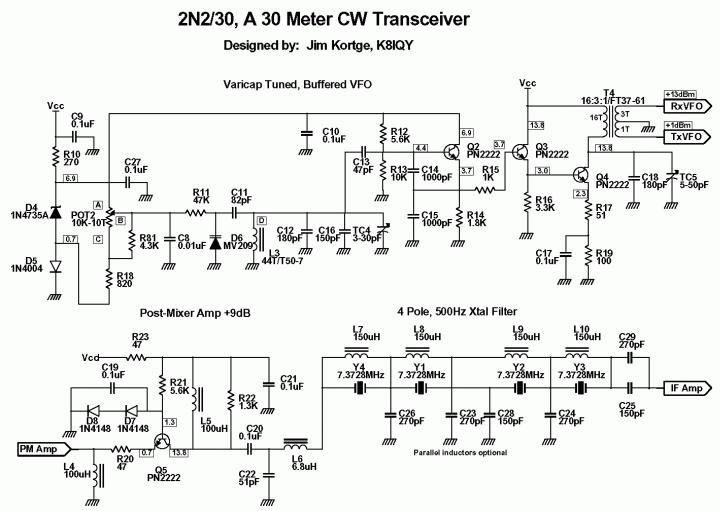

2N2/30 Schematic BA

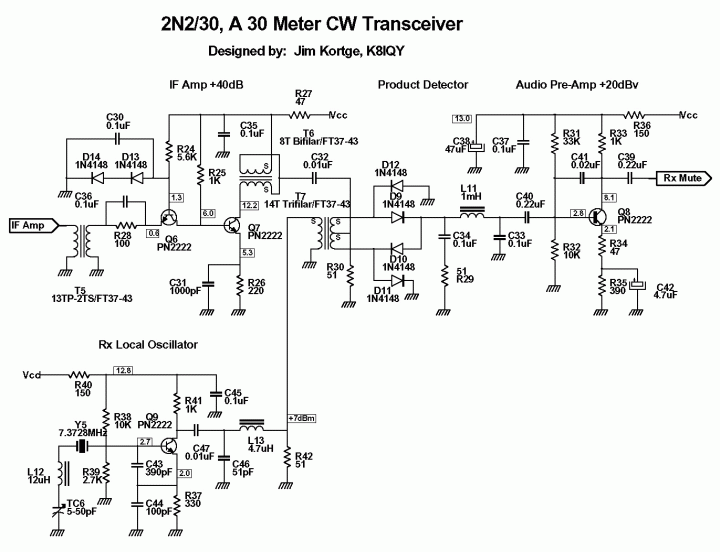

2N2/30 Schematic CA

2N2/30 Schematic DA

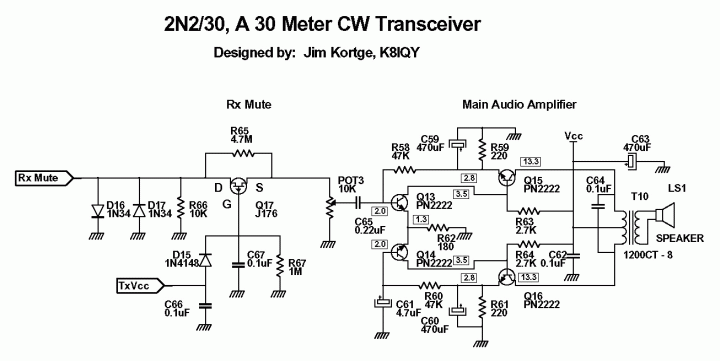

2N2/30 Schematic EA

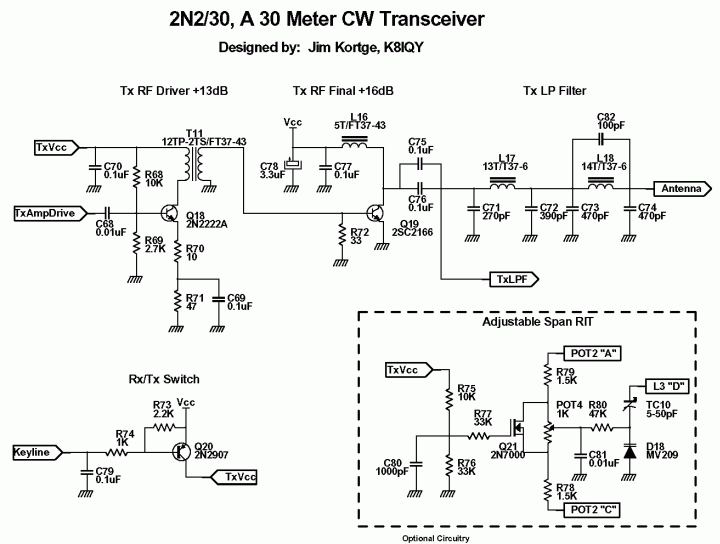

2N2/30 Schematic FA
