SW30+ Schematics

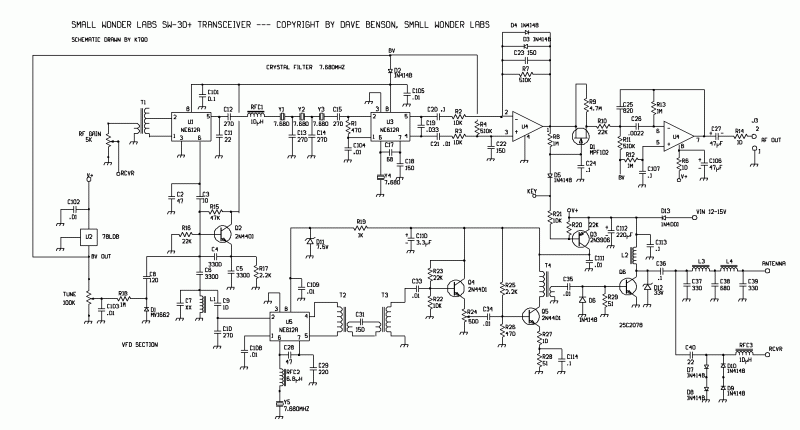

SW30 Schematic
This is the schematic of the original SW30 rig, before any enhancements were added.

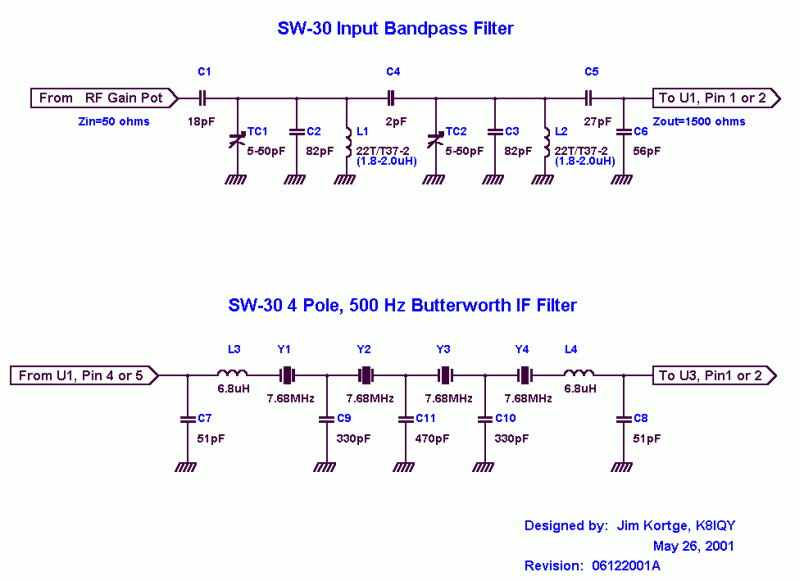

Alternate input and crystal filters
Replacement receiver input and main crystal filters used in SW30+ construction.

Added SW30+ audio amplifier
Added audio amplifier capable of driving a speaker used in SW30+ construction.
